This is a mobile medium voltage cable line, which is a comprehensive TFKable solution for professional power engineering
The solution minimizes the time of power outage during planned repairs or during a power grid failure.
![easy1.jpg [114.24 KB]](https://www.tele-fonika.com/storage/image/core_files/2025/4/8/f20f7667791f1ffa1e853cfc85153dac/jpg/tfkable/preview/easy1.jpg)
| Insulation material | HEPR |
| Type of outer sheath | PVC |
| Rated voltage Uo/U | 12/20 kV |
| Cross-sections of the conductor | 3x35 mm2 |
| Cross-section of the return conductor | 16 mm2 |
| Type of conductor | Class 5 |
| Cable diameter | 28 mm |
| Bending radius | 0,45 m |
| Insulation material | HEPR |
| Type of outer sheath | PVC |
| Rated voltage Uo/U | 12/20 kV |
| Cross-sections of the conductor | 1x35 mm2 |
| Cross-section of the return conductor | 16 mm2 |
| Type of conductor | Class 5 |
| Cable diameter | 28 mm |
| Bending radius | 0,45 m |
Specifications
Approximate module dimensions:
Specifications
| Maximum voltage (Um) | 24 kV |
| Impulse voltage (Uimp) | 125 kV |
| Continuous load current: | 250 A |
| Overload current (<8 hours): | 300 A |
| Short-circuit current (1 sec): | <12,5 kA |
Specifications:
| Maximum voltage (Um): | 24 kV |
| Impulse voltage (Uimp): | 125 kV |
| Continuous load current: | 250 A |
| Overload current (<8 hours): | 300 A |
| Short-circuit current (1 sec): | <12,5 kA |
Specifications
|
Maximum voltage (Um): |
24 kV |
|
Impulse voltage (Uimp): |
125 kV |
|
Continuous load current: |
250 A |
|
Overload current (<8 hours): |
300 A |
|
Short-circuit current (1 sec): |
<12,5 kA |
Specifications
|
Maximum voltage (Um): |
24 kV |
|
Impulse voltage (Uimp): |
125 kV |
|
Continuous load current: |
250 A |
|
Overload current (<8 hours): |
300 A |
|
Short-circuit current (1 sec): |
<12,5 kA |

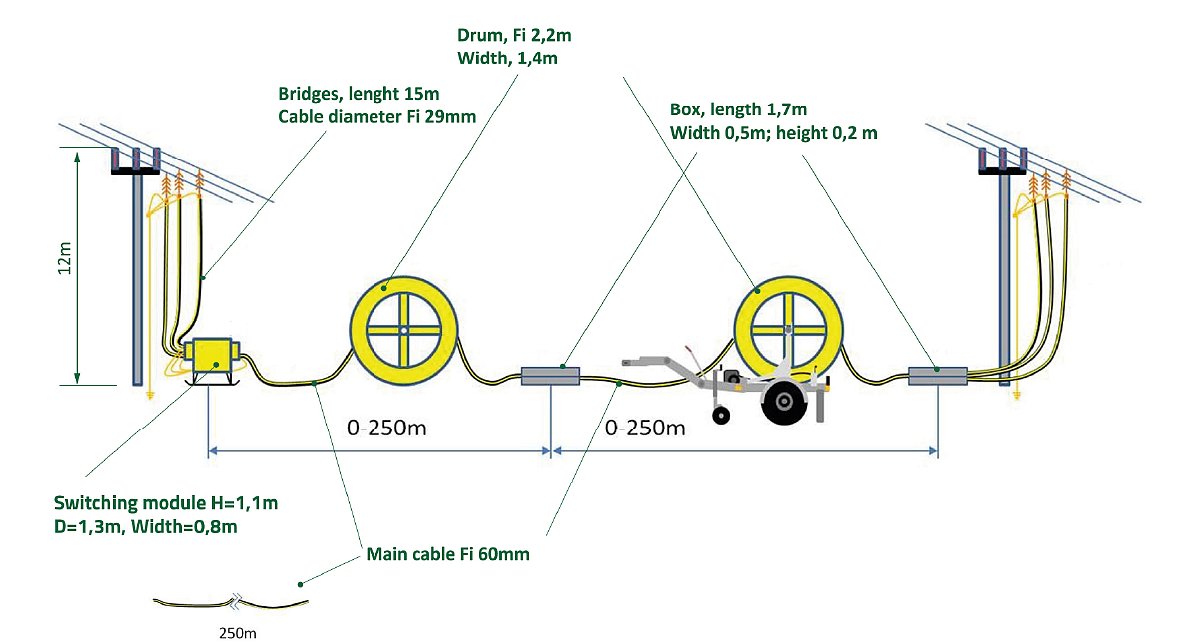

![Easyline EN_Obszar roboczy 1.png [335.68 KB]](https://www.tele-fonika.com/storage/image/core_files/2025/3/27/91df53a83ff72394db88a0e68aca20bd/png/tfkable/preview/Easyline%20EN_Obszar%20roboczy%201.png)
